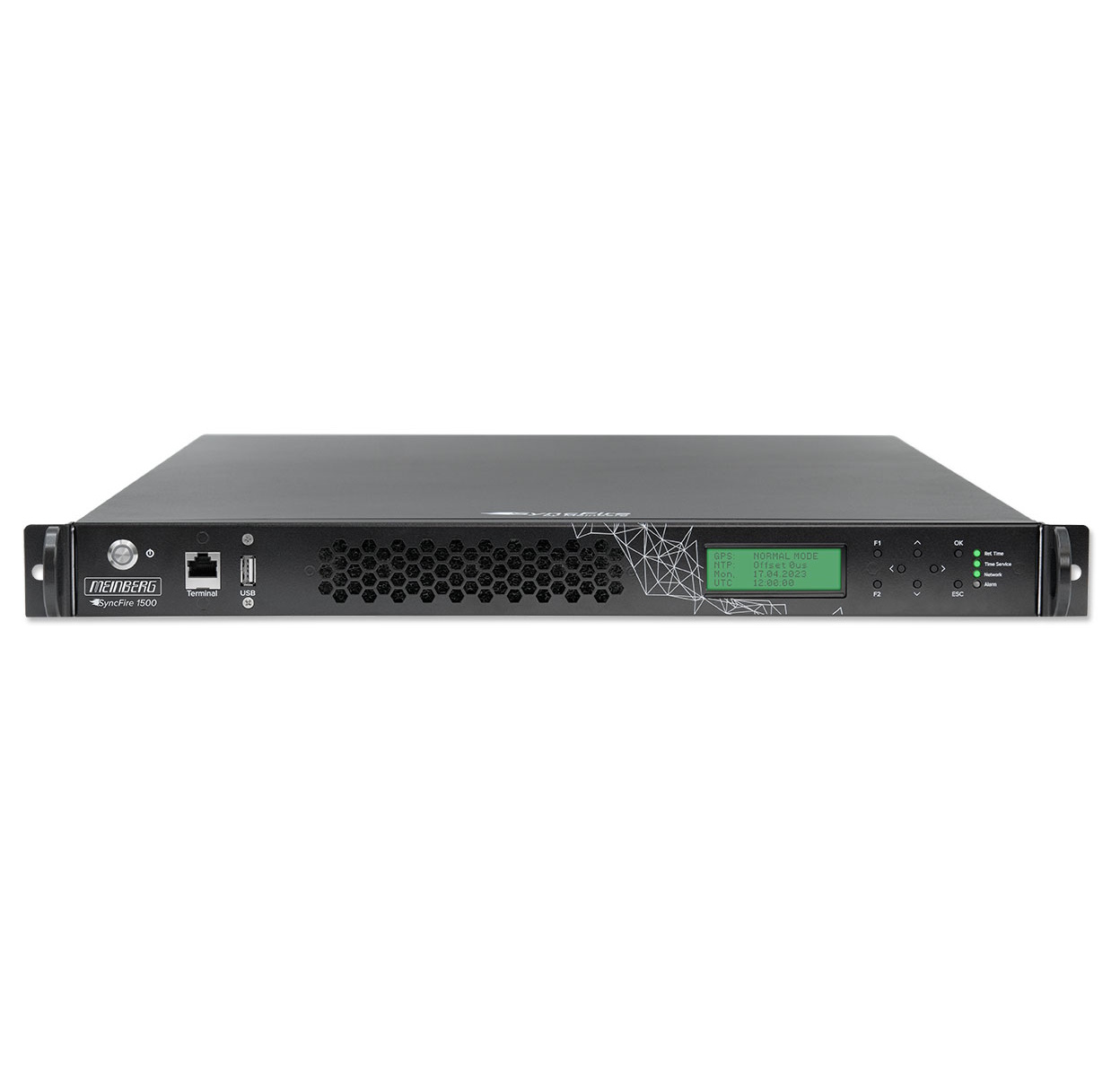

SyncFire 1500
SyncFire 1500 пропонує найвищу продуктивність NTP-сервера без компромісів. Виготовлений на замовлення з інтегрованим GPS- або мульти-GNSS (GNS) приймачем або PTP-ведомим пристроєм, спеціально розробленим для оптимальної синхронізації, SyncFire 1500 розроблений для гіпермасштабних середовищ, які залежать від великої кількості пристроїв, що мають єдину спільну точку відліку часу, і чудово в них працює.
Опис
ОПИС
SyncFire 1500 пропонує найвищу продуктивність NTP-сервера без компромісів. Виготовлений на замовлення з інтегрованим GPS- або мульти-GNSS (GNS) приймачем або PTP-ведомим пристроєм, спеціально розробленим для оптимальної синхронізації, SyncFire 1500 розроблений для гіпермасштабних середовищ, які залежать від великої кількості пристроїв, що мають єдину спільну точку відліку часу, і чудово в них працює.
ХАРАКТЕРИСТИКИ
| Operating System | Custom LANTIME OS based on Linux 4.x LTS kernel LTOS V7.08.002 or newer |
| Receiver Type | 12-channel GPS C/A code receiver (“GPS” type receiver) or Combination GPS L1 / Galileo E1 / GLONASS L1OF / BeiDou B1I receiver (“GNS” type receiver) or PTP slave NIC based on Oregano Systems syn1588 technology |
| Status Indicators | Four bicolor LEDs indicating: – Reference time status – Time service status – Network link status – Alarm states |
| Type of Antenna | Receiver Type “GPS”: Meinberg GPSANTv2 antenna, supports transmission routes of up to 300 m using standard RG58 cable, up to 700 m with standard RG213 cable, and up to 1100 m with standard Ultraflex H2010 cable Receiver Type “GNS”: 40 dB Multi GNSS antenna for GPS, Galileo, GLONASS and BeiDou reception |
| Display | LCD panel, 4 x 20 characters |
| Control Elements | Eight push buttons to set up basic network parameters and to change receiver settings |
| Network Interface | Standard: 4-port Gigabit Ethernet (RJ45)Available Options: Additional network card with 4x Gigabit Ethernet (RJ45) ports or 4x 1/10 Gbit/s Ethernet (SFP+) ports or 2x 1/10/25 Gbit/s Ethernet (SFP28) ports or 2x 10/40 Gbit/s Ethernet (QSFP+) ports |
| Universal Serial Bus (USB) Ports | 2x USB 3.0 interfaces (1x front, 1x rear) These USB interfaces can be used for:connecting an input device (e.g., keyboard)backing up the configurationbacking up log filesimporting and exporting cryptographic certificateslocking the function keys on the display |
| CPU | Intel Xeon E2276G Hexa-Core CPU 4.90 GHz, 6 cores, 12 threads, 12 MB cache, 80 W TDP |
| RAM | 16 GB DDR4 3200 MT/s ECC |
| Internes Speichermedium | SSD, 120 GB |
| Network Protocols OSI Layer 4 (Transport Layer) | TCP, UDP |
| Network Protocols OSI Layer 7 (Application Layer) | Telnet, FTP, SSH (including SFTP, SCP), HTTP, HTTPS, syslog, SNMP |
| Internet Protocol (IP) | IPv4, IPv6 |
| Network Autoconfiguration Support | IPv4: Dynamic Host Configuration Protocol – DHCP (RFC 2131) IPv6: Dynamic Host Configuration Protocol – DHCPv6 (RFC 3315) and Autoconfiguration Networking – AUTOCONF (RFC 2462) |
| Network Time Protocol (NTP) | NTP v2 (RFC 1119), NTP v3 (RFC 1305), NTP v4 (RFC 5905) SNTP v3 (RFC 1769), SNTP v4 (RFC 4330) MD5 / SHA-1 Authentication and Autokey Key Management |
| Time Protocol (TIME) | Time Protocol (RFC 868) |
| IEC 61850 | Synchronization of IEC 61850-compliant devices using SNTP |
| Hypertext Transfer Protocol (HTTP) | HTTP/HTTPS (RC 2616) |
| Secure Shell (SSH) | SSH v1.3, SSH v1.5, SSH v2 (OpenSSH) |
| Telnet | Telnet (RFC 854-RFC 861) |
| Simple Network Management Protocol (SNMP) | SNMPv1 (RFC 1157), SNMPv2c (RFC 1901-1908), SNMP v3 (RFC 3411-3418) |
| Power Supply Unit | Two hot-pluggable power supply units for redundant power supply Connector Type: IEC 60320 C13 female connector for C14 plug Nominal Voltage Range: 100 – 240 V AC Frequency Range: 50 – 60 Hz Maximum Output: 400 W Nominal Input Current: 6.3 A (240 V AC) |
| Physical Dimensions | 439 mm x 42 mm x 602 mm (17.28 in x 1.54 in x 23.7 in) [W x H x D] |
| Supported Temperature | Operation: 0 °C to 45 °C (32 °F to 113 °F) Storage: -40 °C to 70 °C (-40 °F to 158 °F) |
| Supported Humidity | Operation: Max. 90 % at 40 °C (104 °F), non-condensing Storage: Max. 95 % at 50 °C (122 °F), non-condensing |
| Contents of Shipment | Models with a GPS sync input card include a Meinberg GPS IF antenna/downconverter for outdoor installation, a mounting kit containing all the accessories required to mount the antenna on a pole or wall, and a 20 m (65.6 ft) RG58 coaxial cable with pre-fitted connectors as standard. Models with a GNS sync input card include a multi-GNSS antenna for outdoor installation, a mounting kit containing all the accessories required to mount the antenna on a pole or wall, and a 20 m (65.6 ft) Belden H155 coaxial cable with pre-fitted connectors as standard. |
| Technical Support | Meinberg offers free lifetime technical support via telephone or e-mail. |
| Warranty | Three-year warranty |
| Firmware Updates | Firmware is field-upgradeable, updates can be installed directly from the unit or via a remote network connection. Software updates are provided free of charge for the lifetime of your Meinberg product. |
| RoHS Status of Product | This product is fully RoHS-compliant. |
